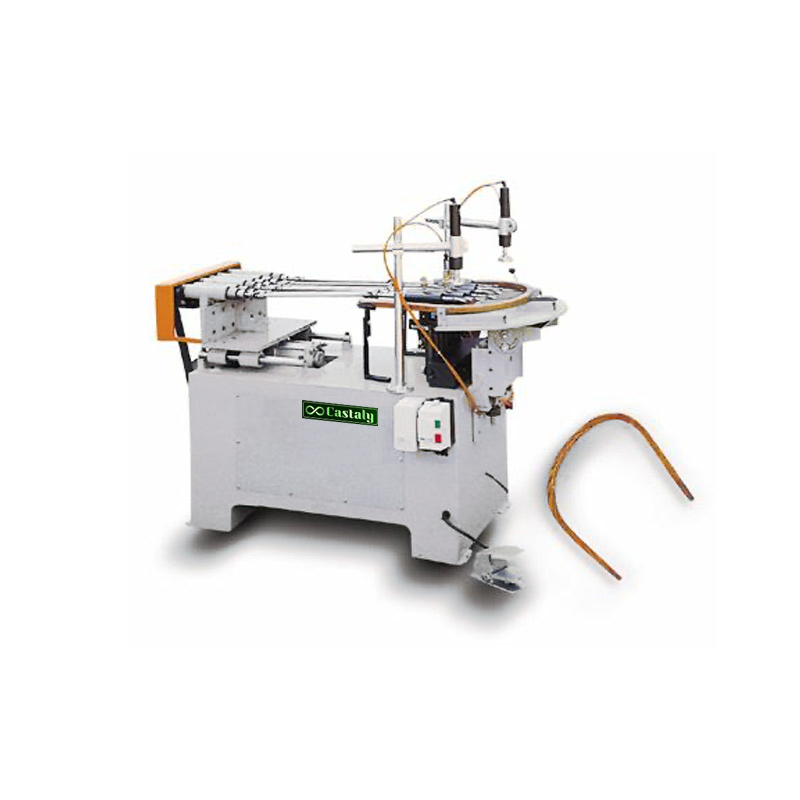

Universal Horizontal Angle Boring Drilling
BR-406UH
Features:
- The BR-406UH is specially designed for the drilling of curved back chairs.
- Built with 6 spindles for the simultaneous drilling of 6 holes.
- The Universal spindle, can be adjusted in up/down left/right and forward/backwards angular directions for flexible hole positioning.
- An individual motor drives each spindle and the spindle feed is pneumatically operated.
- The machine is ruggedly constructed throughout and convenient operation and facilitated by the use of a foot switch control.
- The machine is supplied with one set of template as standard.
Specification:
| SPECIFICATIONS |
BR-406UH |
| Motor |
1 HP x 6 |
| Max Spindle Tilt |
27 Degree |
| Spindle Stroke |
3" |
| Spindle Speed |
3400 RPM |
| Air Pressure |
60 PSI |
| Max. Drill Width |
37" |
| Max. Drill Height |
10" |
| N.W. |
1250 LBS |
| G.W. |
1350 LBS |
