Universal Angle, Vertical Multiple Boring M/C

DR-208UV

Price/ea
$28,990.00
Back

Features:

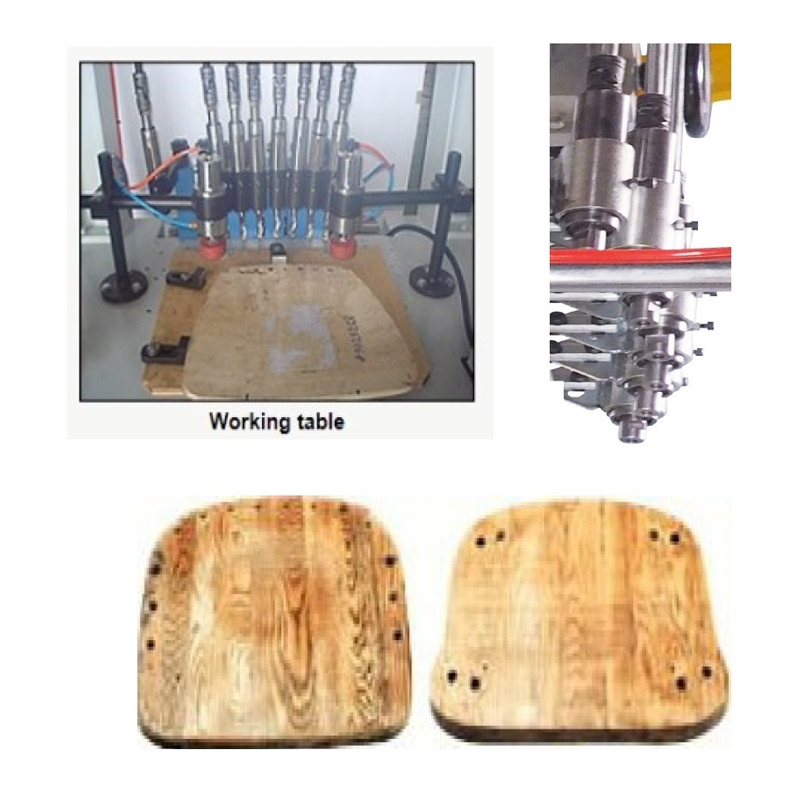

  • The model DR-312UV is ideally suited for drilling the chair seat for the back and arms.
  • It is capable of drilling 12 holes simultaneously.
  • The table up & down feed is driven by a hydraulic power system which provides powerful and stable drilling motions.
  • The universal joint spindle construction allows for the drilling of vertical or angled holes and can be easily adjusted for flexible holes positioning.
  • The machine is ruggedly constructed throughout and convenient operation and facilitated by the use of a foot switch control.

DR-312SP

EXTRA UNIVERSAL DRILL SPINDLE FOR DR-208UV $690.00

Specification:

SPECIFICATIONS DR-204 DR-306 DR-208UV
Spindle Motor 2 HP x 2 2 HP x 4 1 HP x 8
Table Travel / Drill Strock Max. 4" 4" 3-1/8"
Max. Table Stroke Rate 30 Times/Min 30 Times/Min 20 Times/Min
Hold Down Clamps 3 PCS 6 PCS 2 PCS
Spindle Speed 4,000 RPM 4,000 RPM 3,200 RPM
Spindle Tilt ~ ~ Max. 27 Degree
Min. Drill Dis. (Chuck Type) 2" 2" 2"
Working Table Size 24" x 48" 36" x 72" 30" x 30"
Drill Chuck Size 1/2'' 1/2'' 7/16" x 14UNC
Standard Spindle 8 SETS 16 SETS 8 SETS
Max. Spindle 20 SETS 40 SETS 12 SETS
Hyd. Pump 2 HP 2 HP ~
N.W. 1980 LBS 2640 LBS 2300 LBS
G.W. 2310 LBS 3300 LBS 2700 LBS
