3/4" & 1/2" Shaper

SP-3400

Price/ea
$1,090.00
Back

Features:

  • Precision ground cast iron table and T-slot miter gauge slot.
  • Perfect alignment, rigid spindle support a power transfer system for accuracy.
  • Individual micro adjustments fence on both sides of spindle by hand wheels.
  • Large hand wheel for fast movement and lock protection.
  • Spindle travel operated by a rack and scroll gear.
  • Two spindles speed for versatile cutting.
  • Forward and reverse switch for cutting directions.
  • Heavy gauge metal cabinet base.
  • Alloy steel spindle for durability usage.
  • Sealed long-life ball bearings.

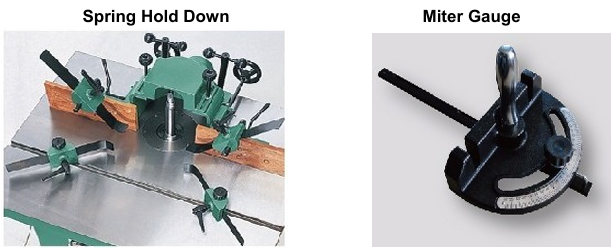

  • Standard equipments: full power motor, dust chute, table inset, spring hold-downs, miter gauge.

SP-305C

2-PCS (1/4", 1/2") ROUTER BIT COLLECTOR SET $89.00

Specification:

SPECIFICATION SP-3400 SP-30 SP-201 SP-202T
Table Dimensions 20" x 24" 28" x 30" 34"x28" 35 ½ X 28"
Spindle Speed (RPM) 8000 / 10000 8000 / 10000 3600 ~ 10000 3600 ~10000

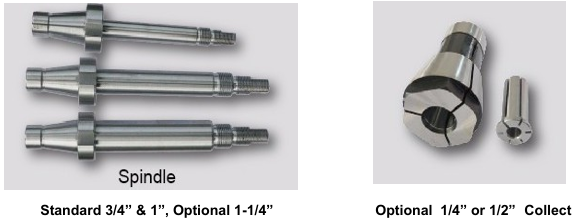

Standard Spindle Dia. 3/4" & ½" 1" & 3/4" 1" & 3/4" 1" & 3/4"
Spindle Travel 3" 3¼" 3 ½" 3 ½"
Spindle Under Nut (1") 4" 4" 4" 5"
Spindle Tilt --- --- --- -5° ~ +45°
Table Insert 5" & 3½" 7" & 3½" 7" 7"
Motor 1½ HP, 1 PH 3 HP, 1 PH 5 HP, 3 PH 5 HP, 3 PH
N.W. 260 LBS 330 LBS 440 LBS 660 LBS
G.W. 300 LBS 460 LBS 520 LBS 790 LBS
