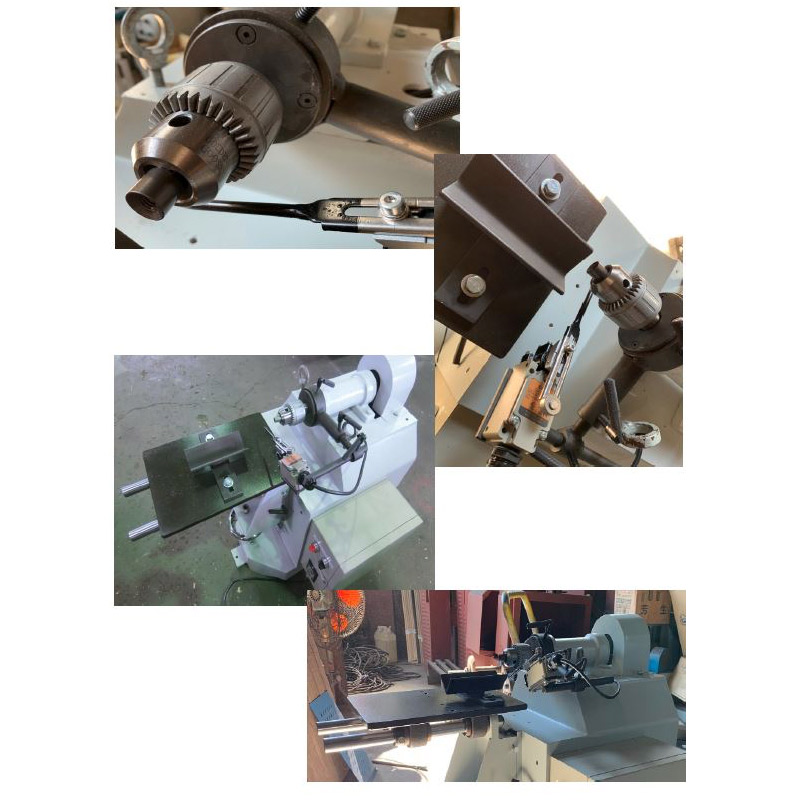

Semi Auto Screw Machine
BR-25SCREW
Features:

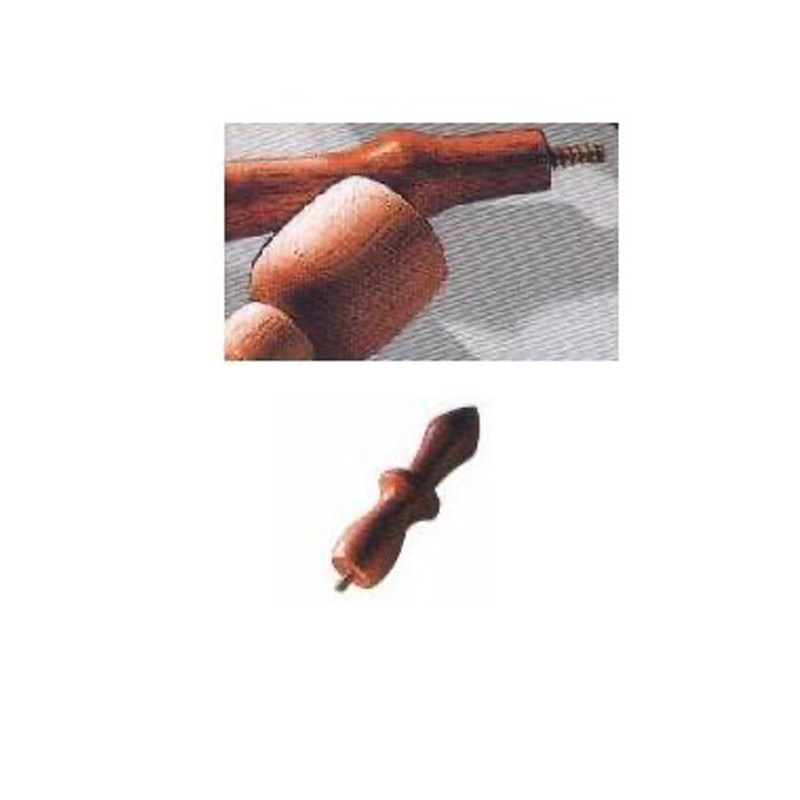

- The BR-25SCREW machine is designed to add a metal screw at end of wooden materiel.
- The machine is a high production, semi automatic unit and is pneumatically operated with air clamp by a foot switch for convenient operation.
- The machine is supplied with one chuck.
Specification:
| SPECIFICATIONS |
BR-25SCREW |
| Hor. Motor |
1HP |
| Drill Speed |
3450 RPM |
| Cutter Head |
1/2" Diameter |
| Screw Holding Chuck MAx. |
5" |
| Table Size (W x L) |
12" x 10" |
| Air Clamp |
1 Pcs |
| Holding Chuck |
1 Pcs |
| N.W. |
256 LBS |
| G.W. |
360 LBS |
