24" Super Planer

WP-610A

Price/ea
$12,590.00
Back

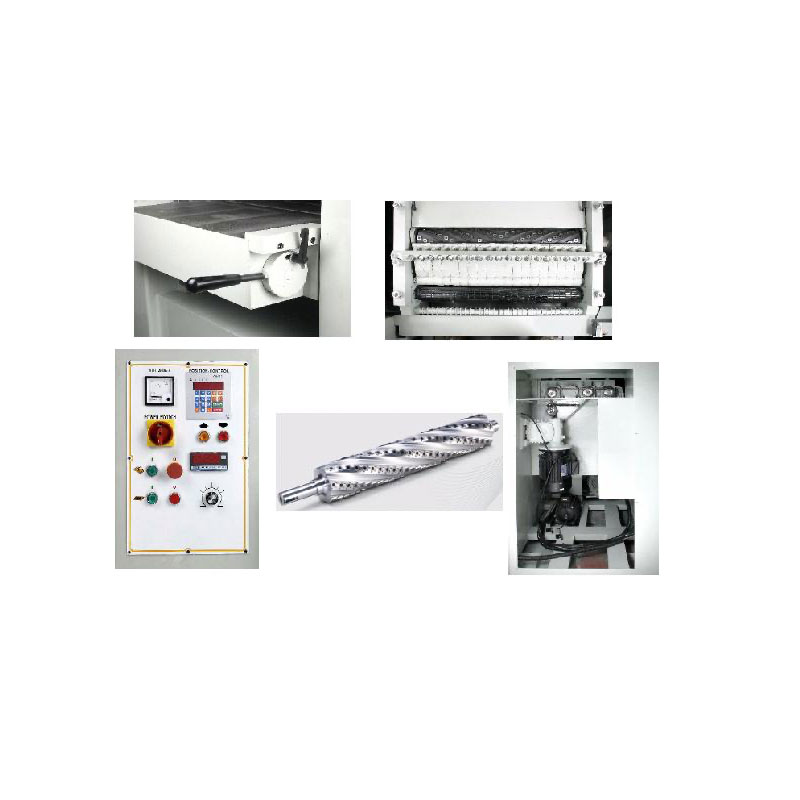

Features:

  • Spiral cutterheads provide precise, efficient planning with low noise levels.
  • Automatic digital thickness controller for quick & accurate setting.
  • Motorized work table raises & lowers by separate motor for more efficient operation.
  • Specially designed infinitely variable feed system is powered by a separate motor and allows adjustment to the exact feed rate for planing to a precise smooth finish on both hard or soft woods
  • Sectional infeed roller & anti-kickback device & chip breaker gives operator greater safety.
  • Up to 8” thickness large cutting capacity.
  • Exhaust dust hood with 4” dia. outlet for proper chip extraction.
  • The motorized work table includes twin quick adjustable bed rollers that can be adjusted for rough & finish planing on damp or dry lumber ensuring a consistently smooth planned finish.
  • Precision sealed long-life ball bearing.
  • Industrial motor for powerful cutting capacity.
  • Heavy gauge sheet metal frame and base for maintenance free service.

CT-SCH-14T

14MM x 14MM SPIRAL CUTTER HEAD BLADES $2.90 each

Specification:

SPECIFICATIONS WP-610
Table Area  25" x 28"
Max. Planing Width 24"
Max. Planing Thickness 8"
Min. Planing Thickness 1/8"
Cutterhead Speed 5500 RPM
Cutterhead Dia. 4-3/4" Spiral
Knife Dimensions  14MM x 14MM
Feeding Speed (Var.) 15 ~ 60 FPM
Max. Cutting Depth 5/16"
Feeding Motor 1 HP
Cutter Head Motor 10 HP, 3 PH, 230 V
Table Elevation Motor 1/2 HP
Digital Thickness Control Yes
Dust Hood Outlet 5"
G.W. 1850 LBS
N.W. 2000 LBS
