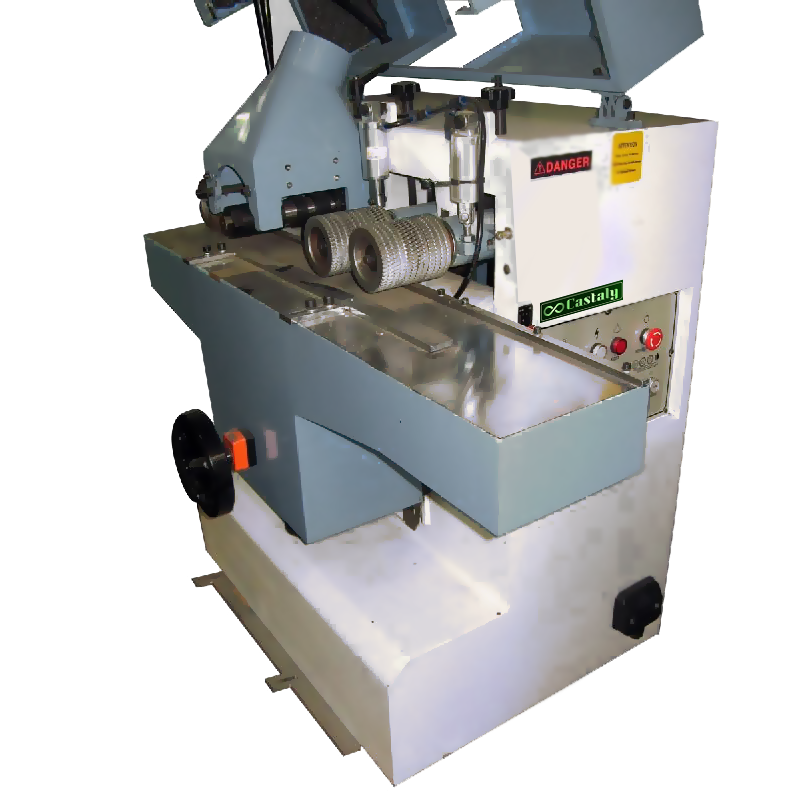

Top Side Through Feed Moulder
SM-65MO
Features:
- Powered pneumatic upper & lower pressure rollers for through feeding and precise cutting.
- Precision ground cast iron table for durability.
- Rigidly mounted alloy steel spindle provides accurate vibration-free power transfer.
- Heavy-duty sheet metal frame.
- Heavy-duty alloy spindle for durability & run out free performance.
- Spindle height adjustment by precision rack & pinion gears.
- Magnetic overload switch for protection.
- Totally enclosed TEFC motor with sealed for life ball bearings.
Specification:
| SPECIFICATIONS |
SP-65MU |
| Max. Working Width |
6" |
| Min. Working Width |
1/2" |
| Max. Working Height |
5" |
| Min. Working Height |
1/2" |
| Spindle Diameter |
40 mm |
| Spindle Speed |
6000 RPM |
| Spindle Motor |
5-1/2" |
| Feed Speed |
12 ~ 30 FPM (5 Speed) |
| Feed Motor |
1 HP Power 220V 3 PH |
| N.W. |
1050 LBS |
| G.W. |
1400 LBS |
